Steam turbines

Offer overview

Used steam turbines from our offer

If you already know the technical requirements for the steam turbine, please feel free to contact us for a pre-selection. If there is a possibility of adjustment (which is often the case), we will point it out to you.

  • 525 KW Tuthill Coppus RLHA24

    Condensing steam turbine from 1999. Inlet pressure: 16 bar, outlet pressure: 0.7 bar. 486 KWel x 1.500 rpm, 400 V/50 Hz. Price: €55,000

  • 825KW KKK CFR 3 G5

    Back pressure steam turbine from 1991. Inlet pressure: 43 bar, outlet pressure: 7.85 bar. 780 KWel x 1.500 rpm, 400 V/50 Hz. Price: €34,500

  • 537 KW Tuthill Nadrowski C4.S-GIII

    Back pressure steam turbine from 2004. Was used as a pump drive. Inlet pressure: 90 bar, outlet pressure: 18 bar. 3.554 rpm. Price: €19,500

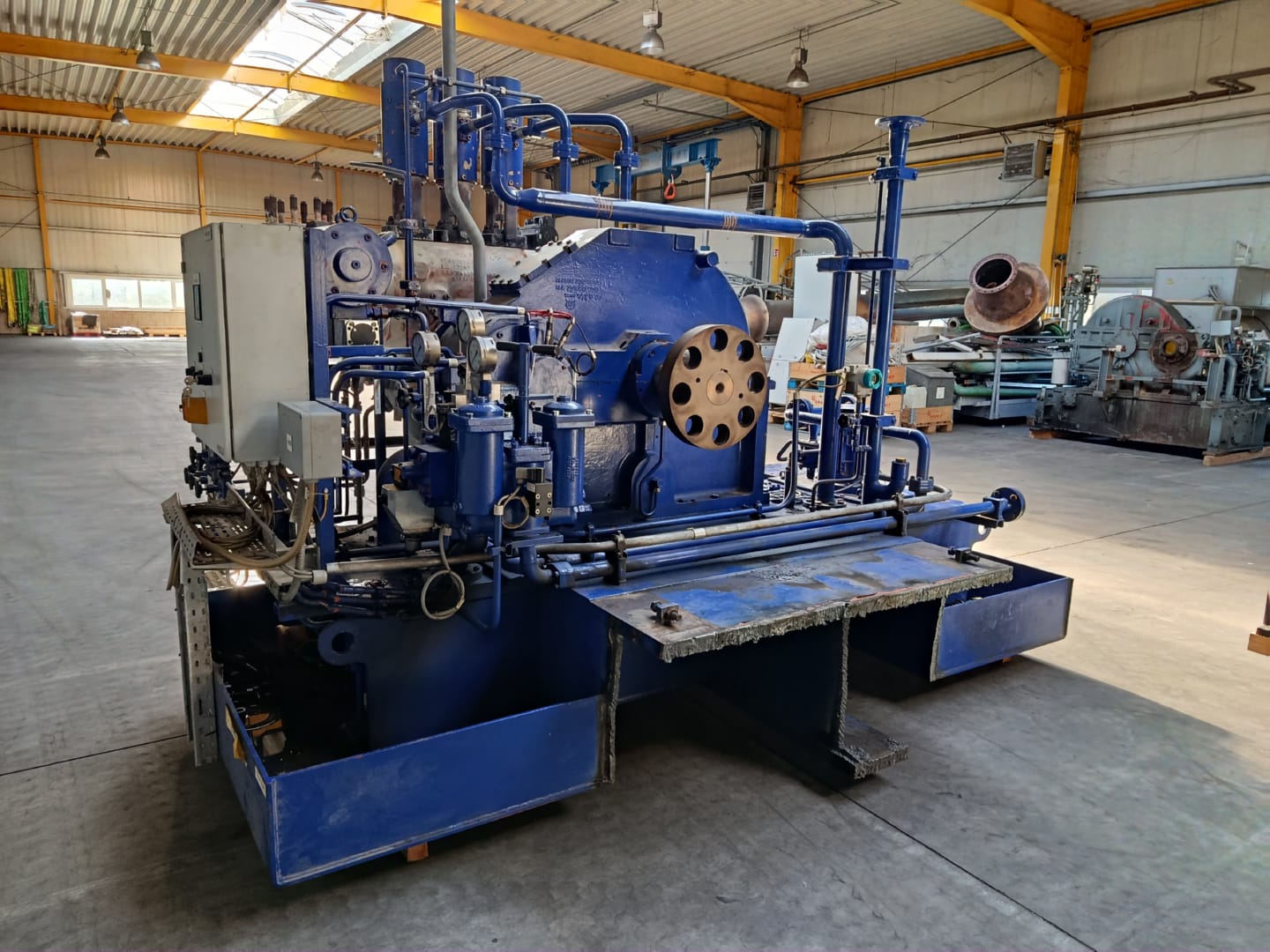

  • 928 kW Siemens CFR3 G5A

    Condensing steam turbine from 2008, turbine with AC generator and control system, 92,014 operating hours, continuously serviced. Inlet pressure: 39 bar, outlet pressure: 0.5 bar. 880 kWel x 1,500 rpm, 400 V / 50 Hz. AC generator: Siemens GEN1FC2 5 62-4LD40-Z, 1,110 kVA. Price: 59,000 €

  • 1072 KW Dresser Rand AVT 72 TW 17

    Backpressure steam turbine from 1995. Inlet pressure: 18 bar, outlet pressure: 5 bar. 1,015 KWel x 1,500 rpm, 400 V/50 Hz Price: €35,000

  • 1047 KW KKK CFR 5 G5

    Steam turbine backpressure from 1995 with control cabinet. Inlet pressure: 12 bar, outlet pressure: 2 bar. 1,000 kWel x 1,500 rpm, 10 kV/50 Hz. Price: €38,000

  • 1522 KW KKK CFR3 G5A / AFA 4G5A

    Condensing steam turbine from 1997. Inlet pressure: 40 bar, outlet pressure: -0.8 bar. 1,300 KWel x 1,500 rpm, 400 V/50 Hz. Price: €49,000

  • 2046 KW AEG Kanis G20

    Backpressure steam turbine from 1985. Inlet pressure: 13 bar, outlet pressure: 4.5 bar. 2,046 KWel x 1,500 rpm, 5,250 V/50 Hz Price: €85,000

  • 2613 KW KKK Twin AFA 46 GT6

    Condensing steam turbine from 2004. Inlet pressure: 29 bar, outlet pressure: -0.8 bar. 2,500 KWel x 1,500 rpm, 6,500 V/50 Hz. Price: €89,000

  • 3817 KW KKK CFR5 G6B

    Backpressure steam turbine from 2006 with 102,000 operating hours. Inlet pressure: 64 bar, outlet pressure: 8.5 bar. 3,817 KWel x 1,500 rpm, 6,300 V/50 Hz Price: 193,000 €

  • 3390 KW Siemens Twin AFA 46K

    Condensing steam turbine from 2008. Inlet pressure: 26 bar, outlet pressure: -0.8 bar. 3,273 KWel x 1,500 rpm, 6,300 V/50 Hz. Price: €163,000

  • 3692 KW Tuthill Nadrowski B5 S-5 + B7 S-3

    Condensing turbine from 2002. Inlet pressure: 40 bar, outlet pressure: 0.15 bar. 3,692 KWel x 1,500 rpm, 6,000 V/50 Hz. Price: 78.000 €

  • 23545 KW BVI / ThyssenKrupp MARC6-C03

    Condensation turbine from 2005. Inlet pressure: 89 bar, outlet pressure: 0.11 bar. 21,000 KWel x 1,500 rpm, Price: €275,000

  • 4690 KW Tubetech ZBW-R-1F-4/1

    Air cooled condenser / steam condenser from 2018, like new,4,680 kW output, condenses up to 8 t/h steam.Price: 96,000 €

  • Woodward Turbine Control 505 from DR B5S-6+G

    Control cabinet / control, built in 2007 for 2,600 KW turbine. Price: 6,900 €
