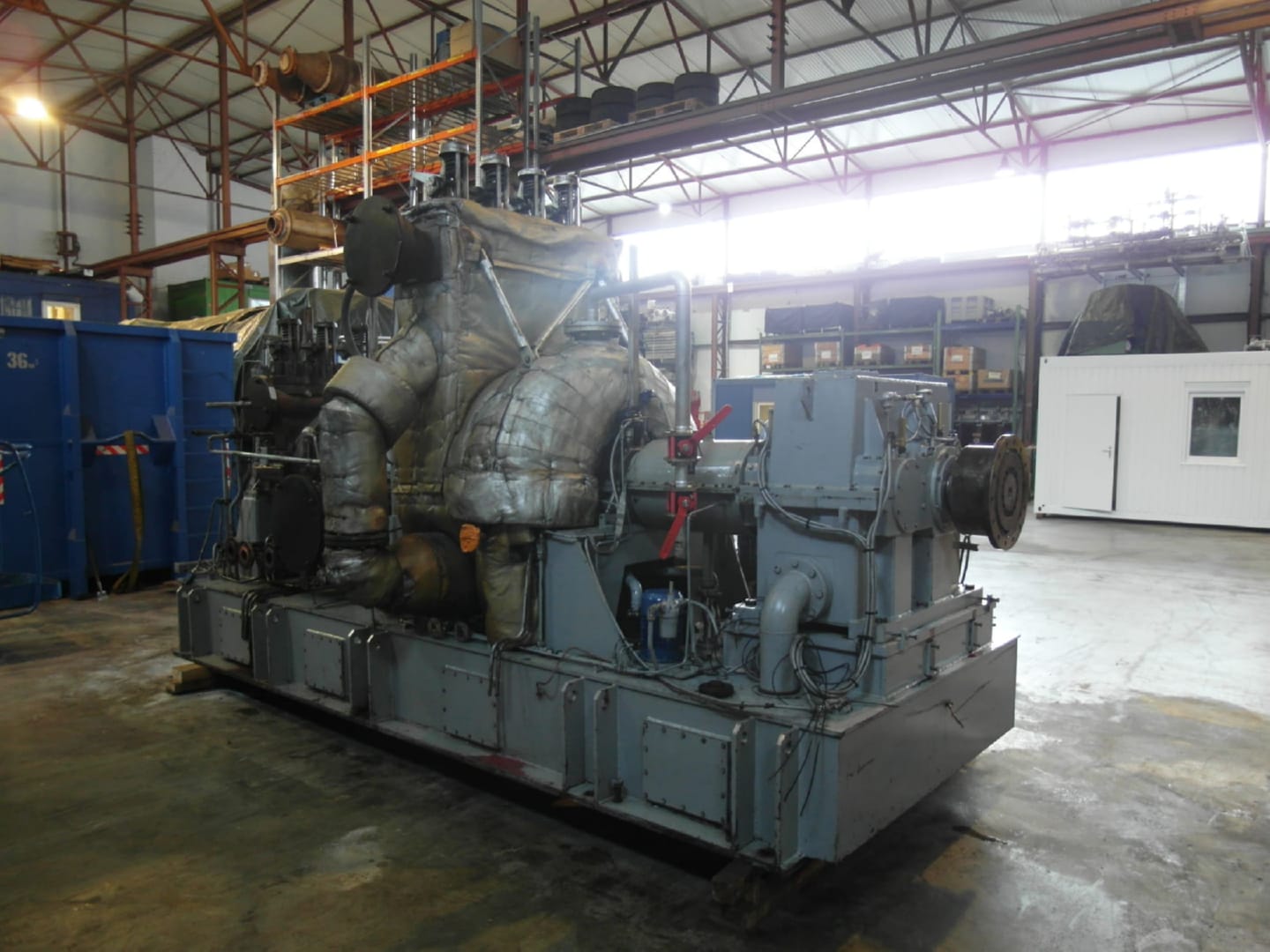

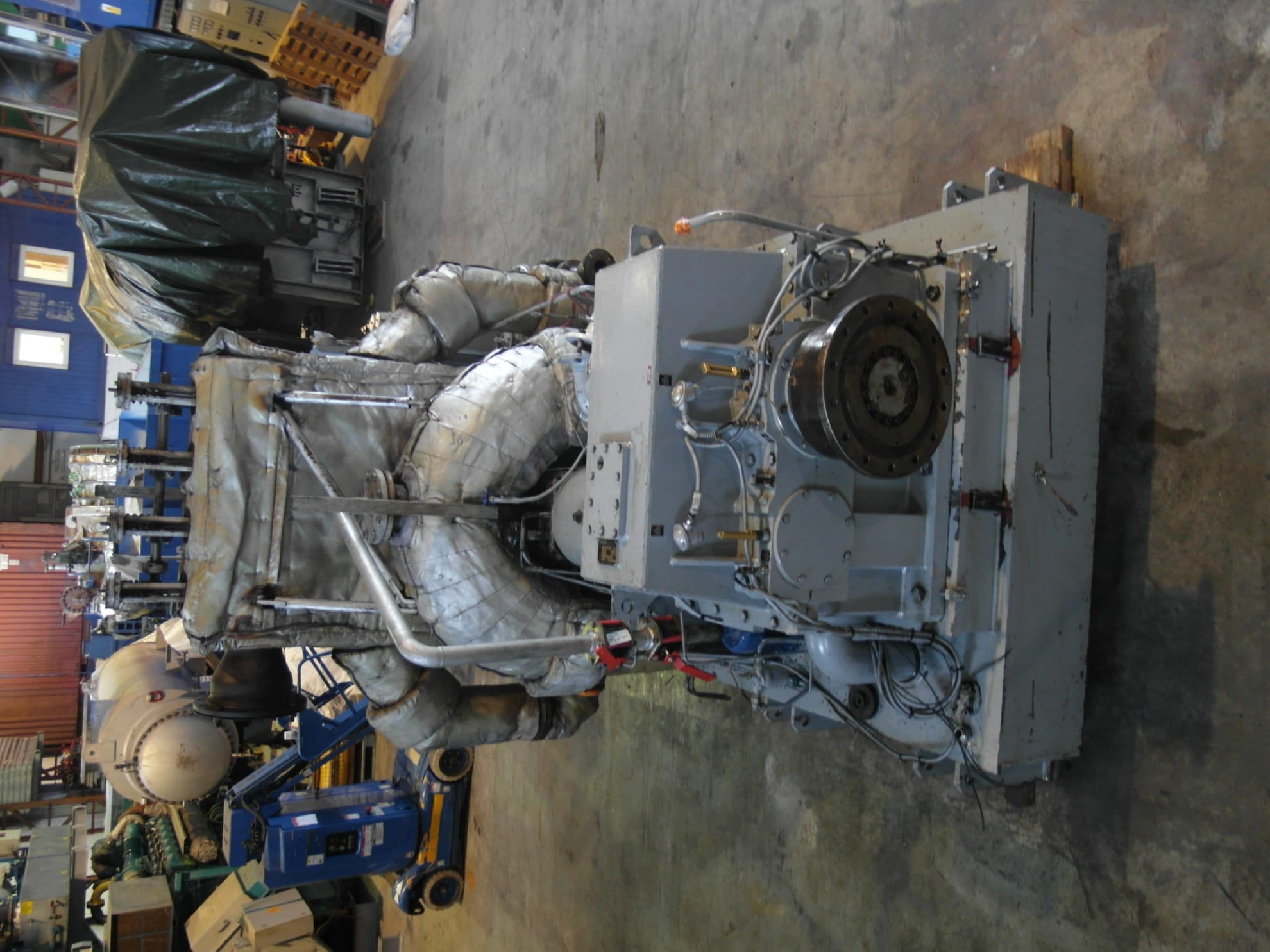

Tuthill Nadrowski Condensing Steam Turbine B5 S-5 + B7 S-3
Power generator from 2002,
without control and steam condenser.
1 available
Inlet pressure 40 bar, outlet pressure 0.15 bar,
3,692 KWel x 1,500 rpm, 6,000 V/50 Hz.
AC Generator: Leroy Somer LSA 56 BS 5-4P, 4,625 KVA
Price: €78,000,
plus VAT, FCA free.
Control: Price on request
Steam condenser: price on request
Steam turbine Tuthill Nadrowski B5 S-5 + B7 S-3

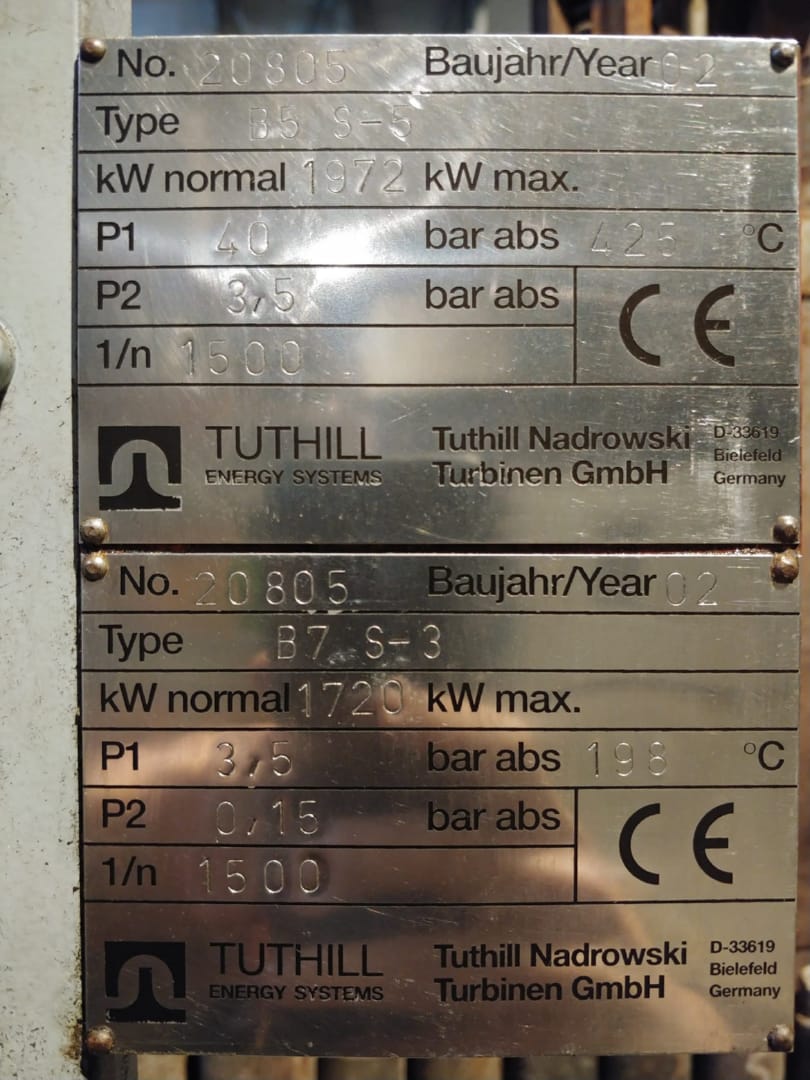

| Manufacturer: | Tuthill Nadrowski |
| Model: | B5 S5 / B7 S3 |
| Type: | Steam condensation |
| Serial number: | 20805 |
| Power [KW]: | 3.692 |
| Pressure input [bar]: | 40 |
| Temperature input [°C] | 425 |
| Pressure output [bar]: | 0,15 |
| Year of manufacture: | 2002 |
| Weight [kg]: | – |
| Dimensions LxWxH [cm]: | – |

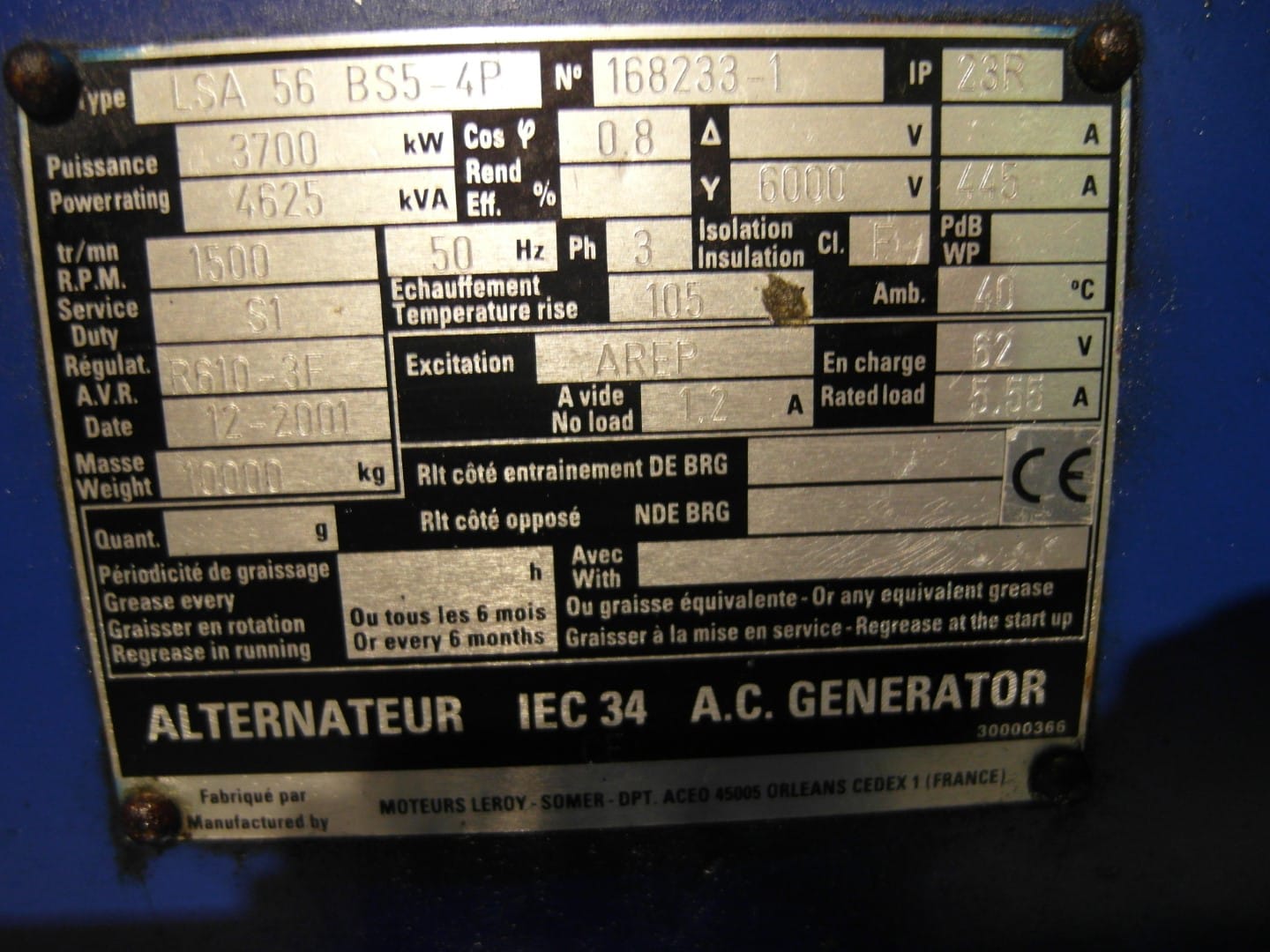

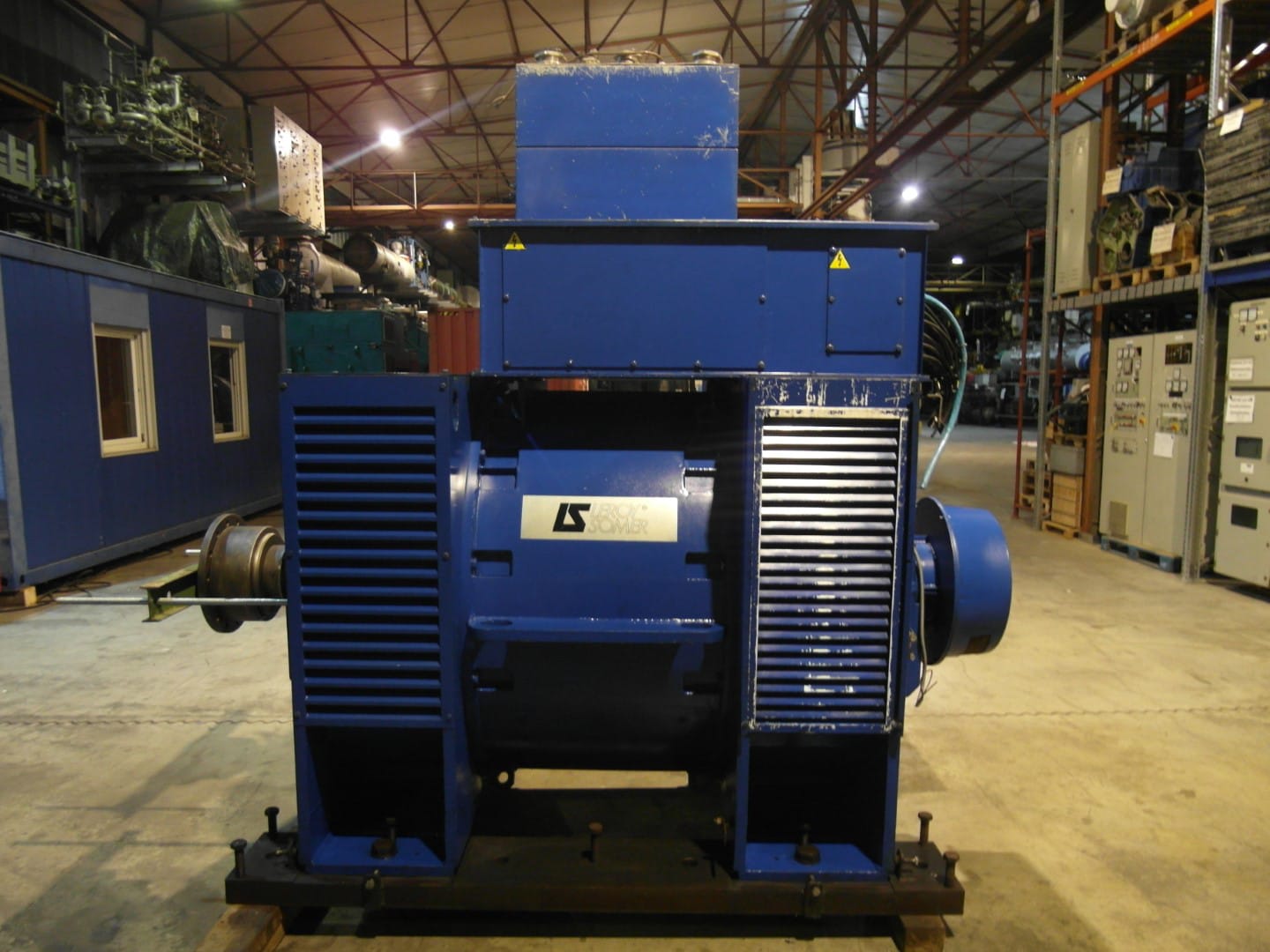

AC generator Leroy Somer LSA 56 BS 5-4P
| Manufacturer: | Leroy Somer |
| Model: | LSA 56 BS 5-4P |
| Type: | AC synchronous generator |
| Serial number: | 168233-1 |
| Power [KVA]: | 4.625 |
| Voltage [V]: | 6.000 |
| Frequency [Hz]: | 50 |
| Current [A]: | 445 |
| Speed [1/min]: | 1.500 |
| Year of manufacture: | 2001 |
| Weight [kg]: | 10.000 |
| Dimensions LxWxH [cm]: | 310 x 180 x 270 |
Images
Documents
| Steam diagram | Technical data | Turbine documentation |
