BVI / ThyssenKrupp MARC6-C03 condensing steam turbine
Generator from 2005 with 135,000 operating hours,
without steam condenser, specified generator is optional.
1 available
Inlet pressure 89 bar, outlet pressure 0.11 bar,
21,000 KWel x 1,500 rpm, 10,500 V/50 Hz (with optional generator).
AC generator (optional): ABB GBA 1120 LD, 26,250 KVA
Price: €375,000, €510,000 with generator ,
plus VAT, FCA free.

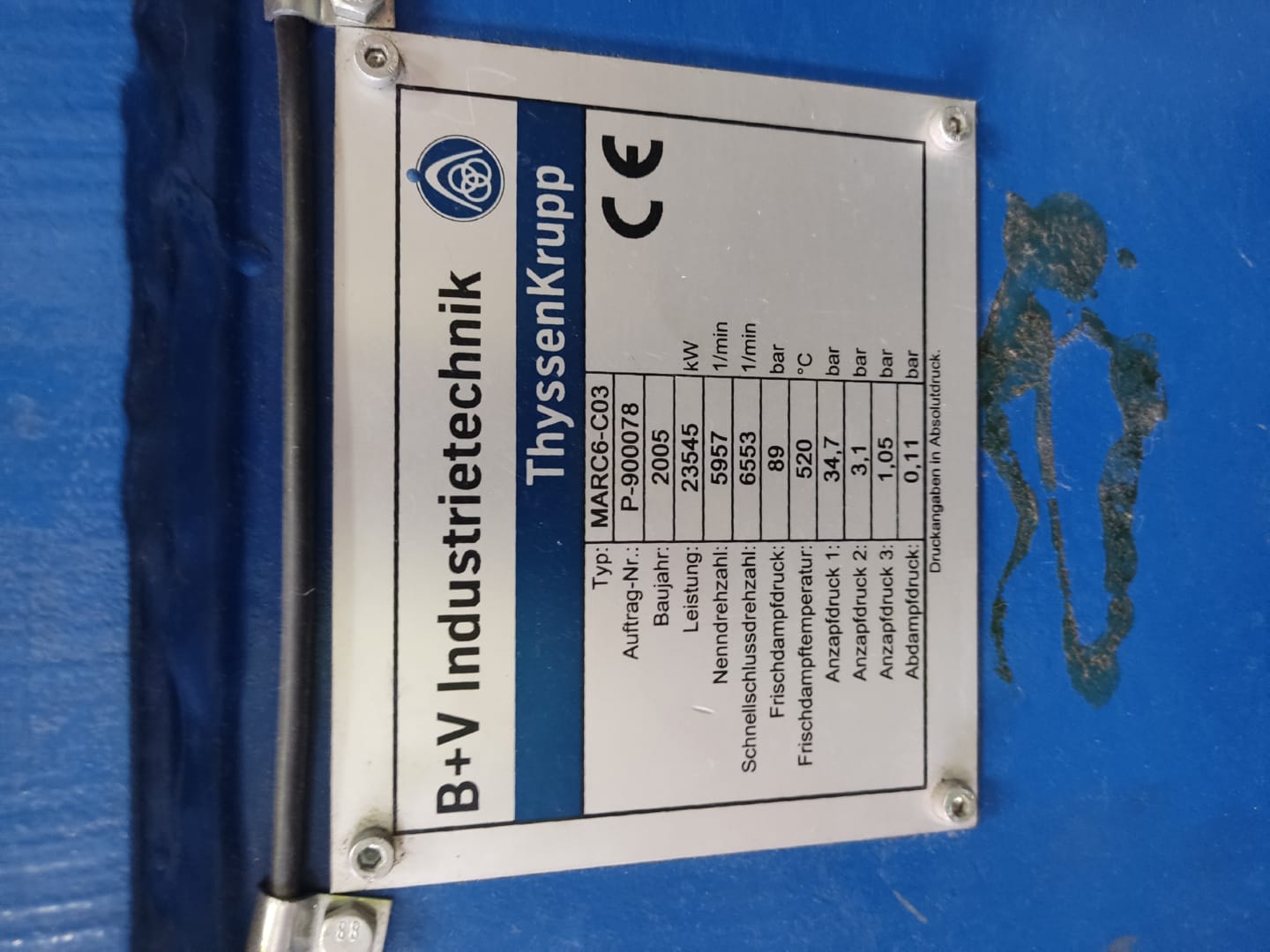

Steam turbine BVI / ThyssenKrupp MARC6-C03
| Manufacturer: | BVI / ThyssenKrupp |
| Model: | MARC6-C03 |
| Type: | Steam condensation |
| Serial number: | P-900078 |
| Power [KW]: | 23.545 |
| Pressure input [bar]: | 89 |
| Temperature input [°C] | 520 |
| Pressure output [bar]: | 0.11 |
| Year of manufacture: | 2005 |
| operating hours: | 135.000 |
| Weight [kg]: | 58.000 |
| Dimensions LxWxH [cm]: | 510x400x340 |
AC generator ABB GBA 1120 LD (optional)
| Manufacturer: | ABB |
| Model: | GBA 1120 LD |
| Type: | AC synchronous generator |
| Serial number: | 8266217 2000 |
| Power [KVA]: | 26.250 |
| Voltage [V]: | 11.000 |
| Frequency [Hz]: | 50 |
| Current [A]: | 1378 |
| Speed [1/min]: | 1.500 |
| Year of manufacture: | 2000 |
| Weight [kg]: | 43.400 |
| Dimensions LxWxH [cm]: | 498x260x229 |
Images
Documents
| Technical drawings | Technical data, steam diagram | Video YouTube |
Complete documentation – 4,700 pages, 950 MB for download from our server.
