Dresser Rand Back Pressure Steam Turbine AVT 72 TW 17
Power generator from 1995,

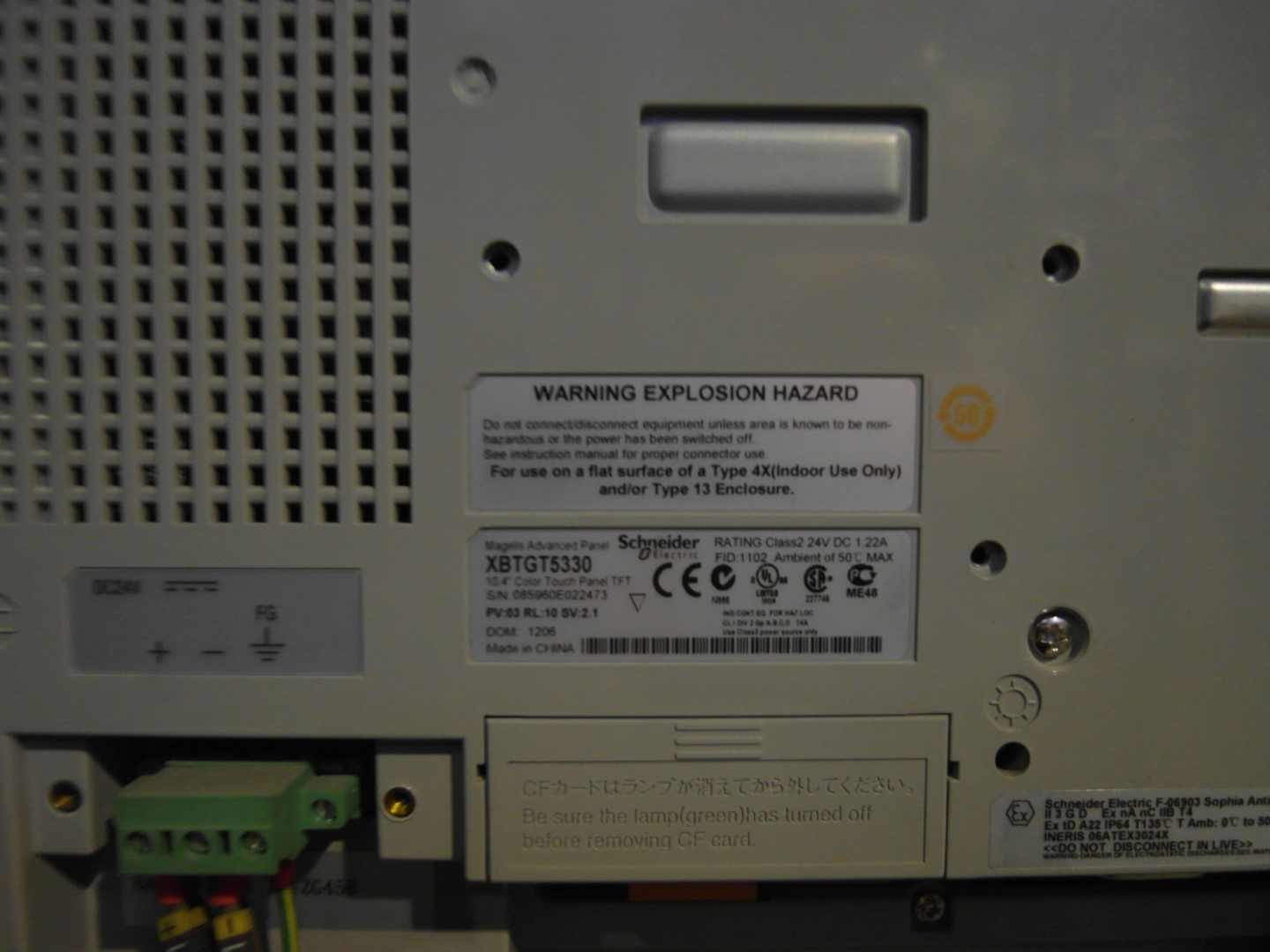

complete with control from 2008.
1 available
Inlet pressure 18 bar, outlet pressure 5 bar,
1,015 KWel x 1,500 rpm, 400 V/50 Hz.
AC Generator: Leroy Somer NRW 50 BL10-4P, 1,375 KVA
Price: €35,000,
plus VAT and FCA free.
Steam turbine Dresser Rand AVT 72 TW 17
| Manufacturer: | Dresser Rand |
| Model: | AVT 72 TW 17 |
| Type: | steam back pressure |
| Serial number: | 81890 |
| Power [KW]: | 1072 |
| Pressure input [bar]: | 18 |
| Temperature input [°C] | 253 |
| Pressure output [bar]: | 5 |
| Year of manufacture: | 1995 |
| Weight turbine and generator[kg] : | 10.900 |
| Dimensions LxWxH [cm]: | 450x240x230 |
AC generator Leroy Somer NRW 50 BL10-4P
| Manufacturer: | Leroy Somer |
| Model: | NRW 50 BL10-4P |
| Type: | AC synchronous generator |
| Serial number: | 162225-1 |
| Power [KVA]: | 1.375 |
| Voltage [V]: | 400 |
| Frequency [Hz]: | 50 |
| Current [A]: | 1985 |
| Speed [1/min]: | 1.500 |
| Year of manufacture: | 1995 |
| Weight [kg]: | 3.600 |
| Dimensions LxWxH [cm]: | – |
Images
Documents
| Data and steam diagram | Video on YouTube |
