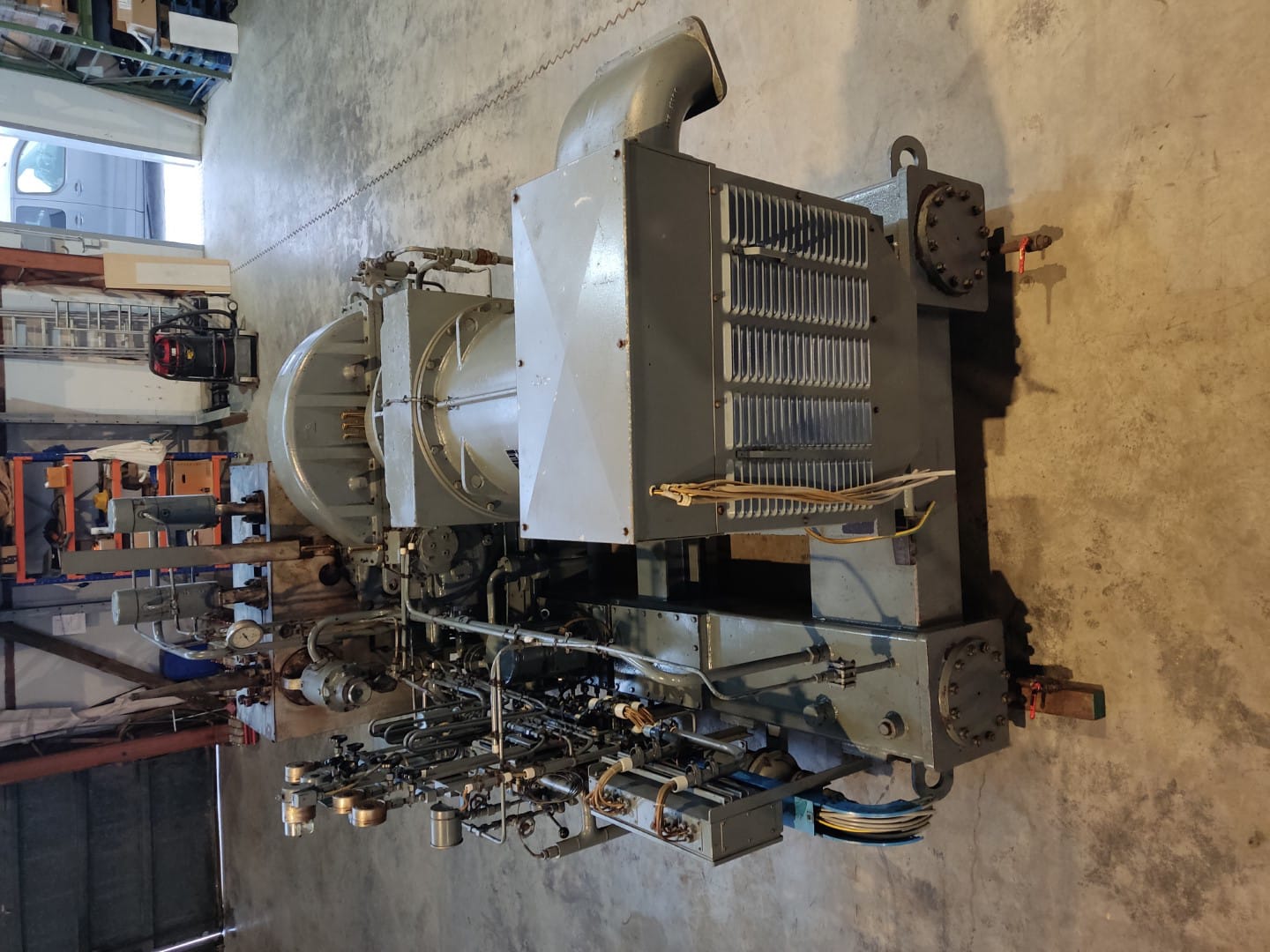

KKK back pressure steam turbine CFR 3 G5
Power generator from 1991,
Turbine with AC generator.
1 available.
Inlet pressure 43.17 bar, outlet pressure 7.85 bar,
780 KWel x 1500 rpm, 400 V/50 Hz.
AC generator: AVK DKBN100M/1100-4, 975 KVA
Price: €34,500,
plus VAT, FCA free.
Control: Price on request

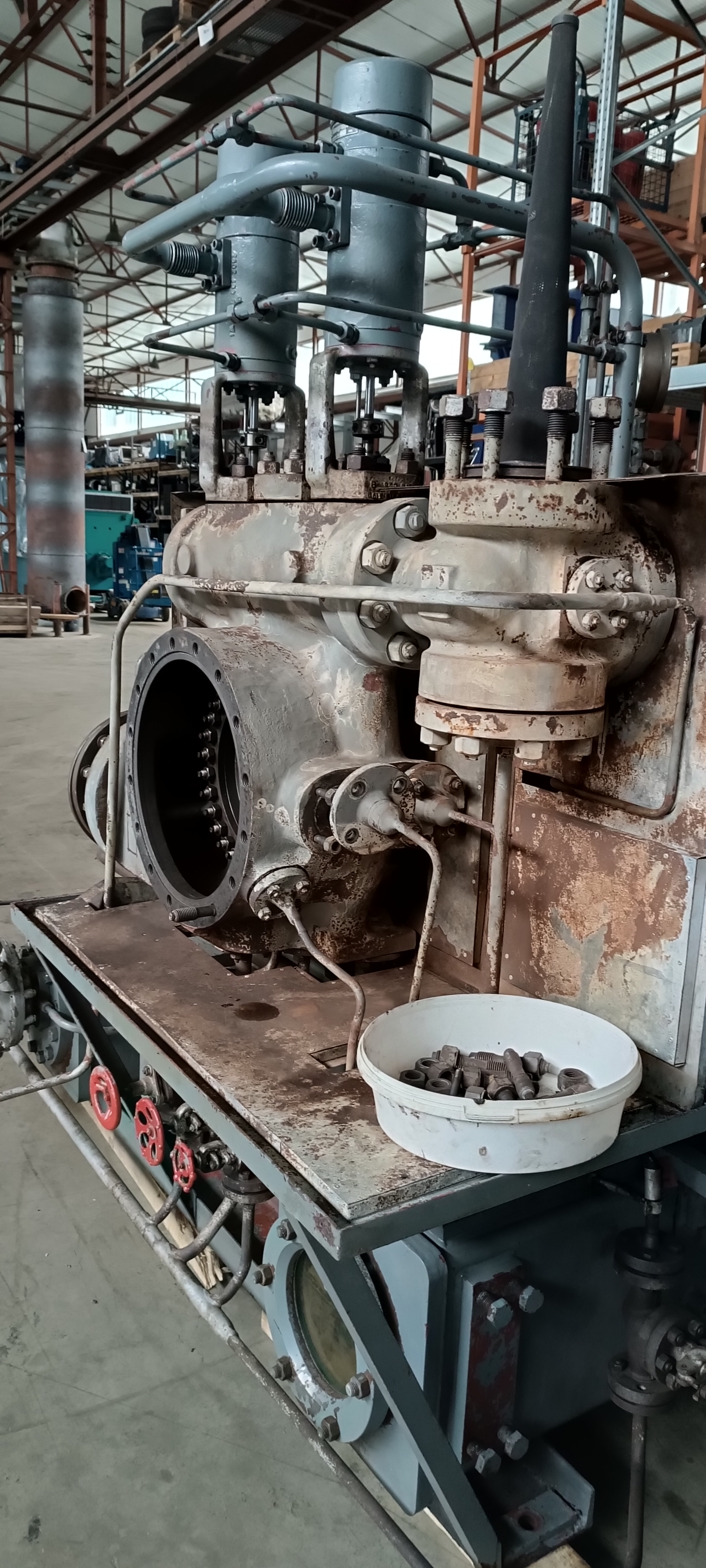

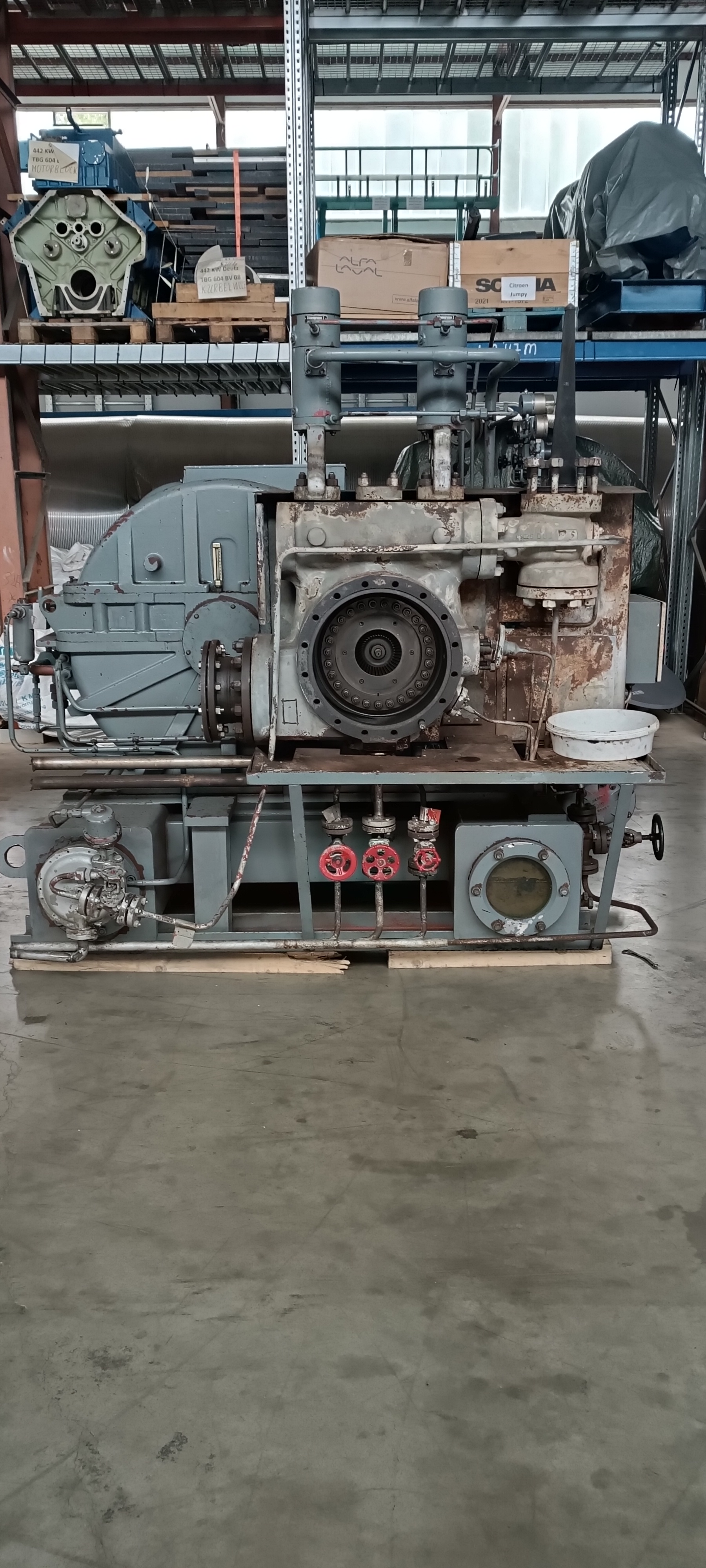

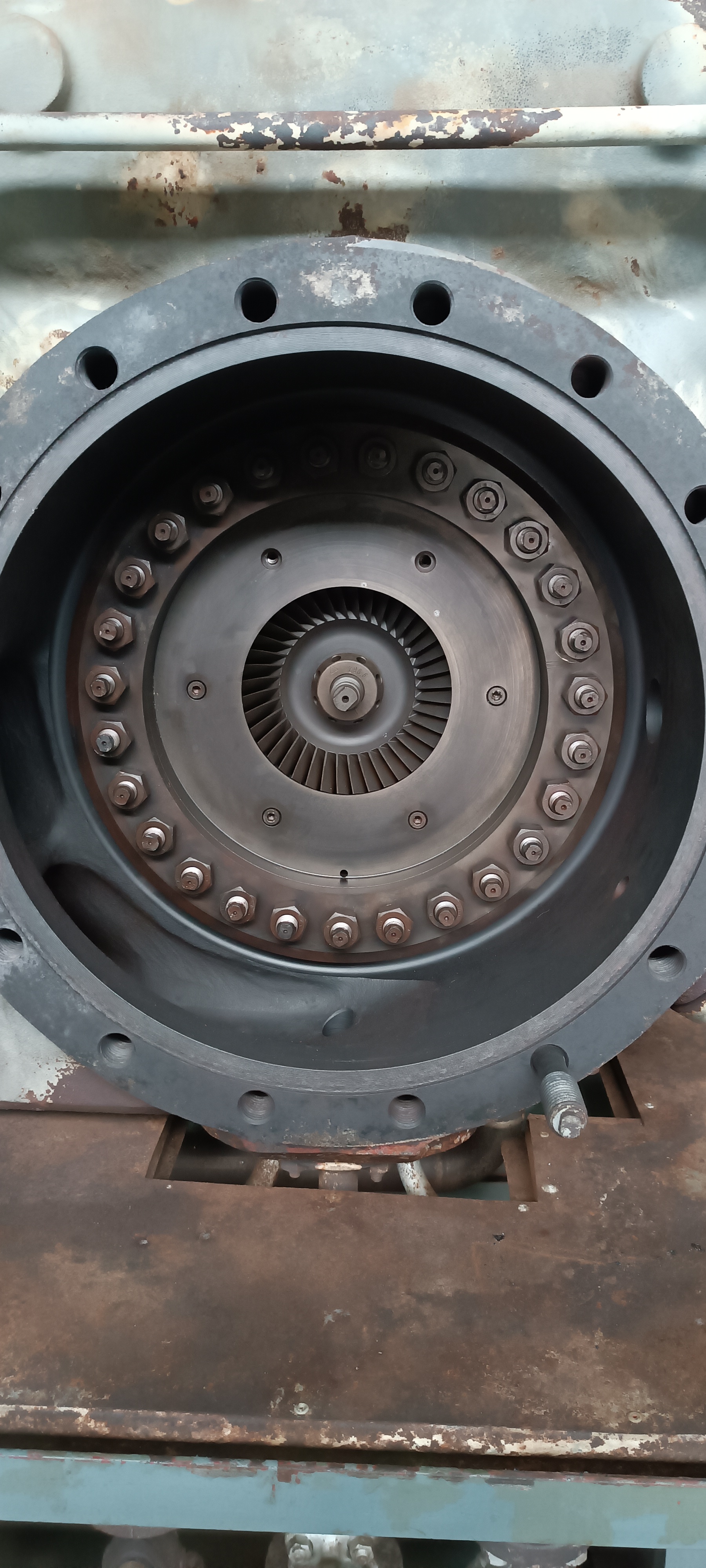

Steam turbine KKK CFR 3 G5
| Manufacturer: | KKK |
| Model: | CFR 3 G5 |
| Type: | steam back pressure |
| Serial number: | 4.535.018 |
| Power [kW]: | 825 |
| Pressure input [bar]: | 43,17 |
| Temperature input [°C] | 420 |
| Pressure output [bar]: | 7,85 |
| Year of manufacture: | 1991 |
| Weight [kg]: | 11.308 |
| Dimensions LxWxH [cm]: | 370x250x270 |
AC generator AVK DKBN100M/1100-4
| Manufacturer: | AVK |
| Model: | DKBN100M/1100-4 |
| Type: | AC synchronous generator |
| Serial number: | 5407563 A001 |
| Power [KVA]: | 975 |
| Voltage [V]: | 400 |
| Frequency [Hz]: | 50 |
| Current [A]: | 1407 |
| Speed [1/min]: | 1500 |
| Year of manufacture: | 1991 |
| Weight [kg]: | 11.300 |
| Dimensions LxWxH [cm]: | 370x250x270 |
Images
Documents
| Data and steam diagram | inspection report | Video on YouTube | Complete documentation (several MB) |
