Siemens CFR3 G5A condensing steam turbine
Power generator from 2008,

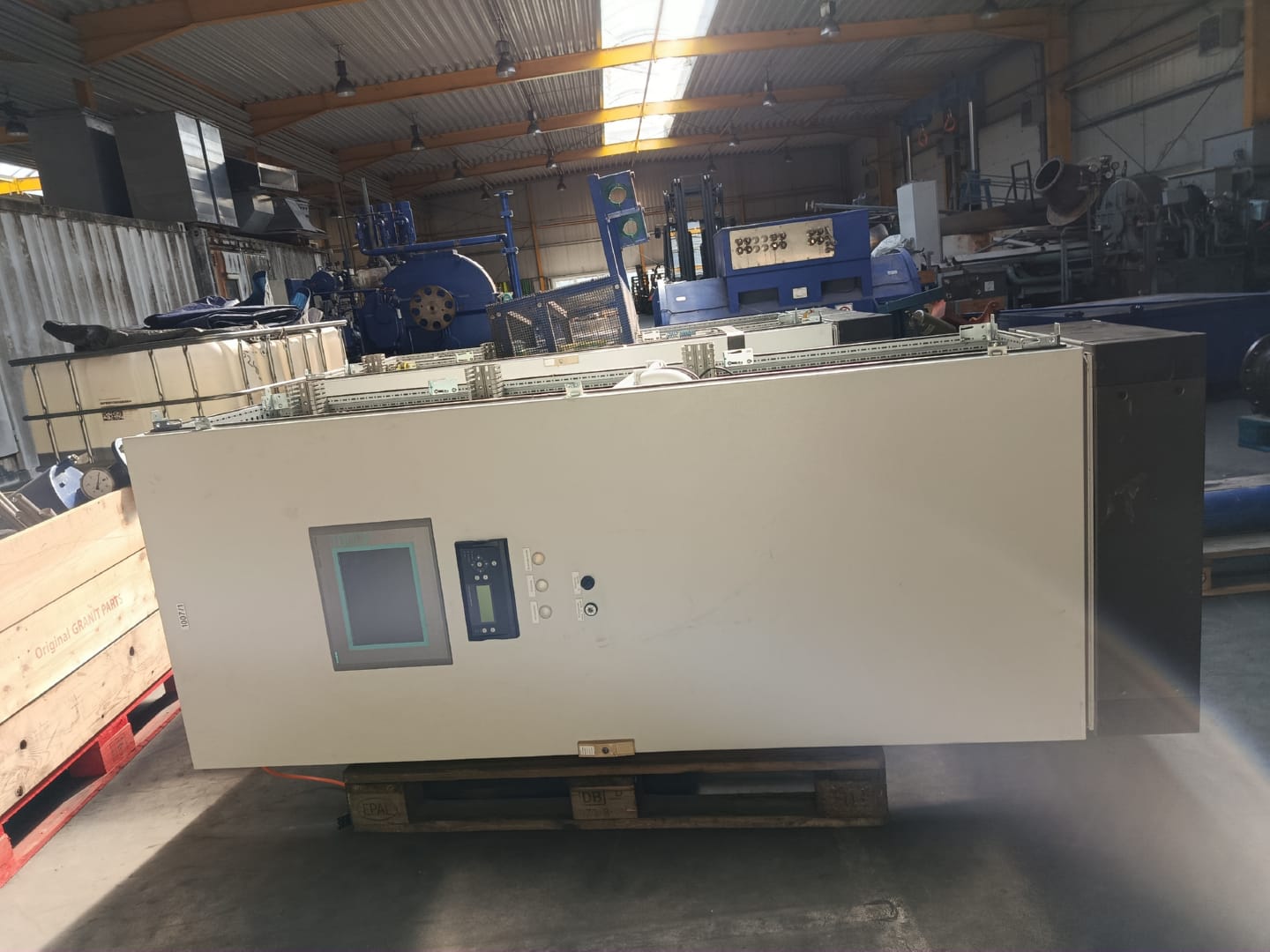

Turbine with AC generator and control system, 92,014 operating hours, continuously serviced.
1 available
880 KWel x 1,500 rpm, 400 V / 50 Hz.
AC generator: Siemens GEN1FC2 5 62-4LD40-Z, 1,110 KVA
Price: €59,000
Plus VAT, FCA exempt.

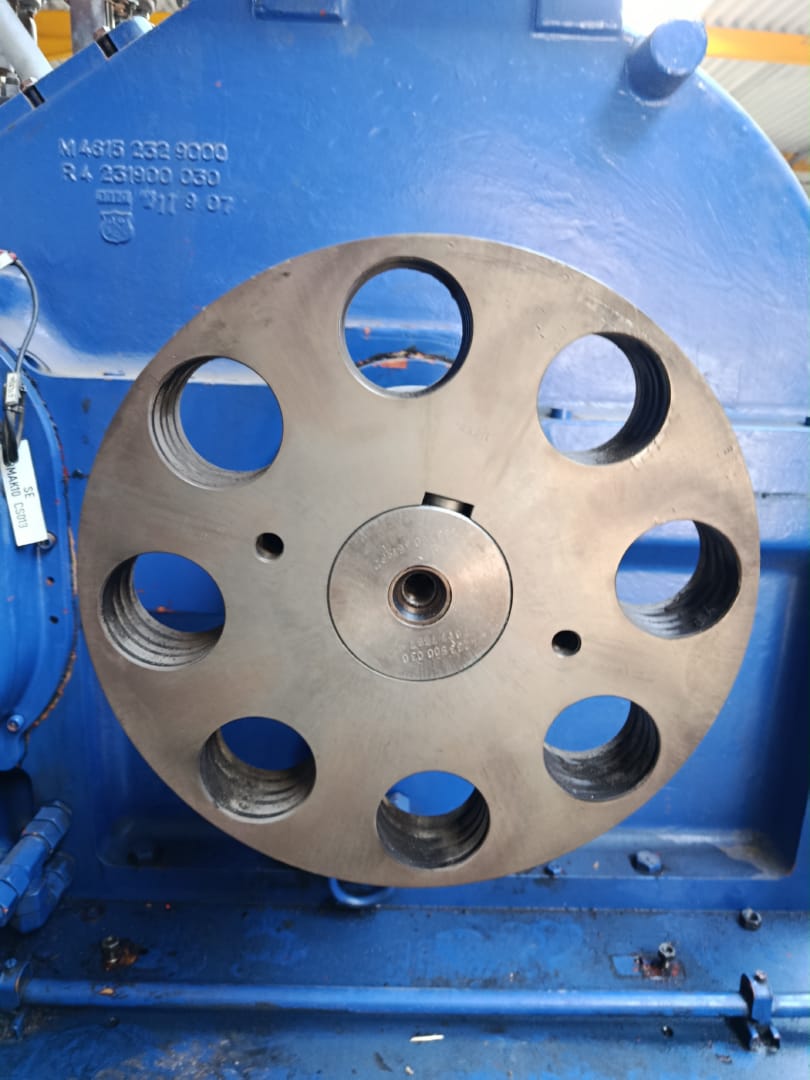

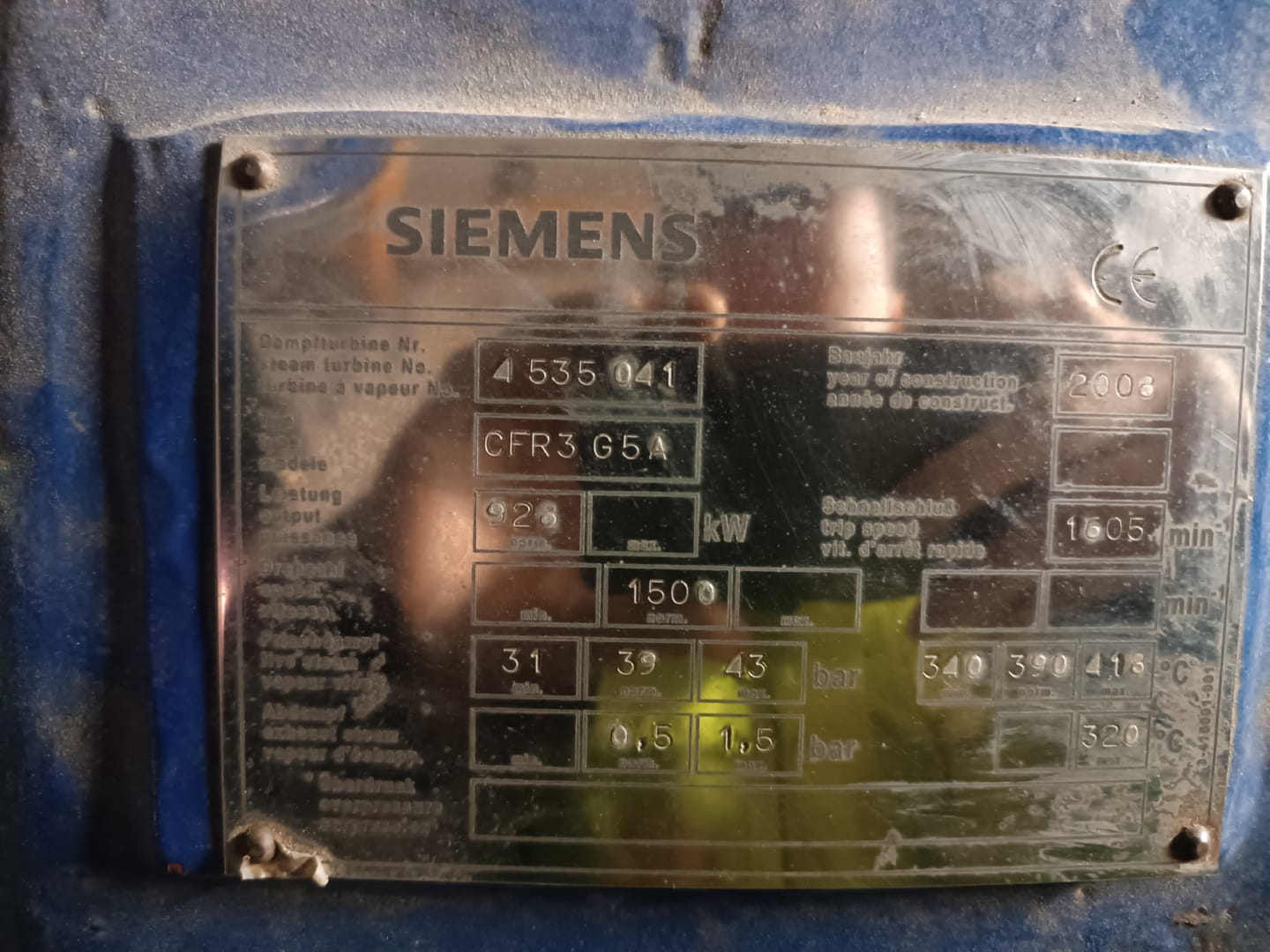

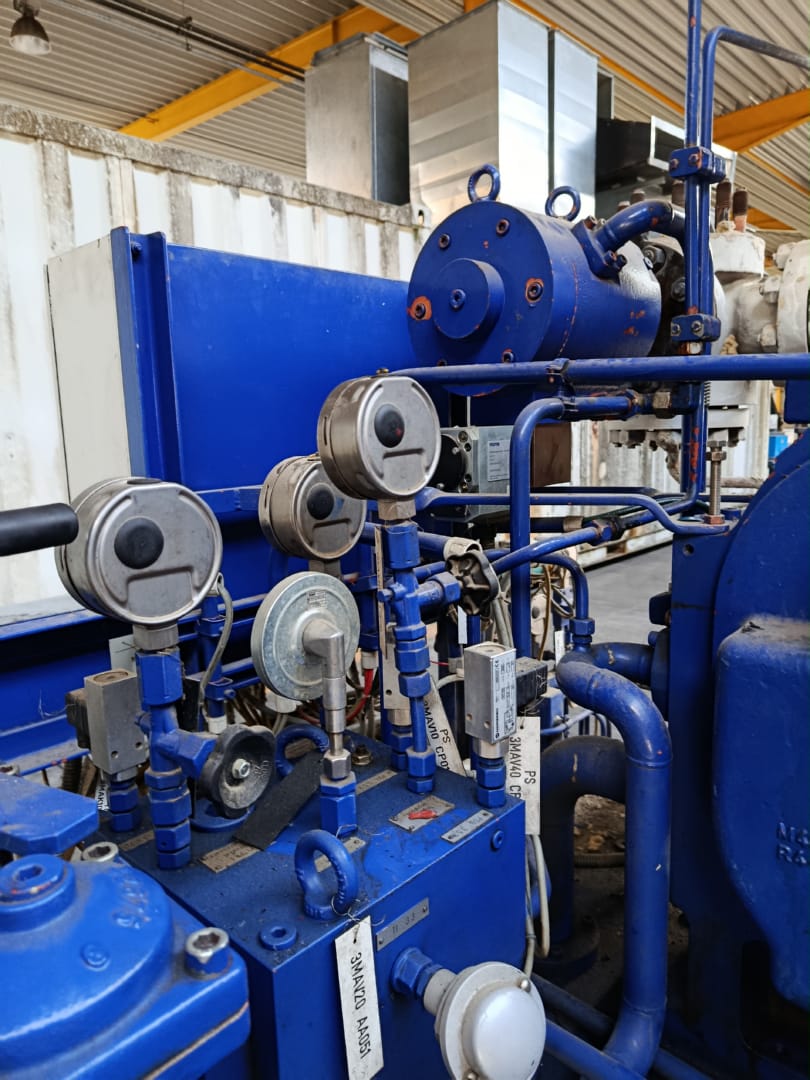

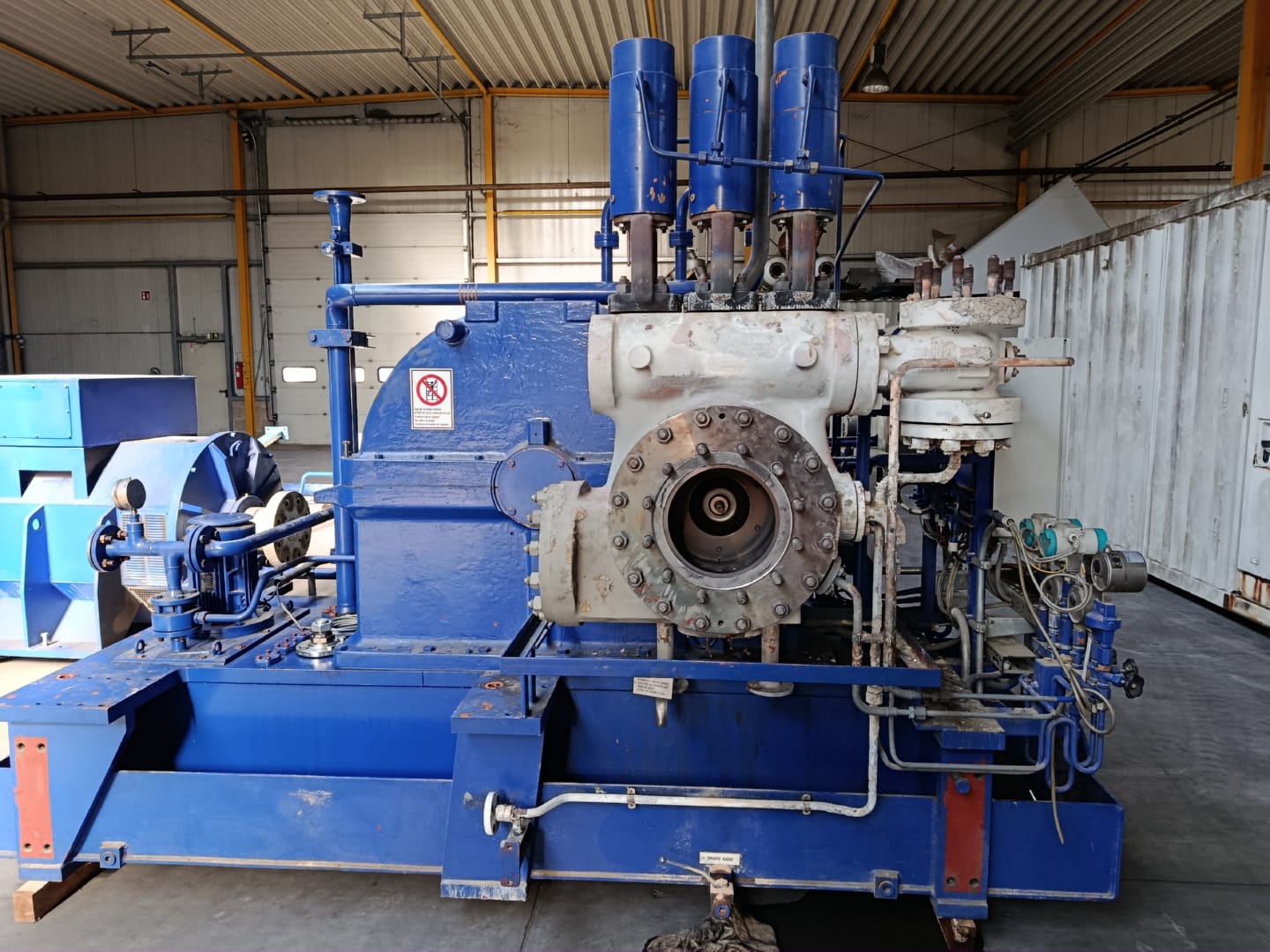

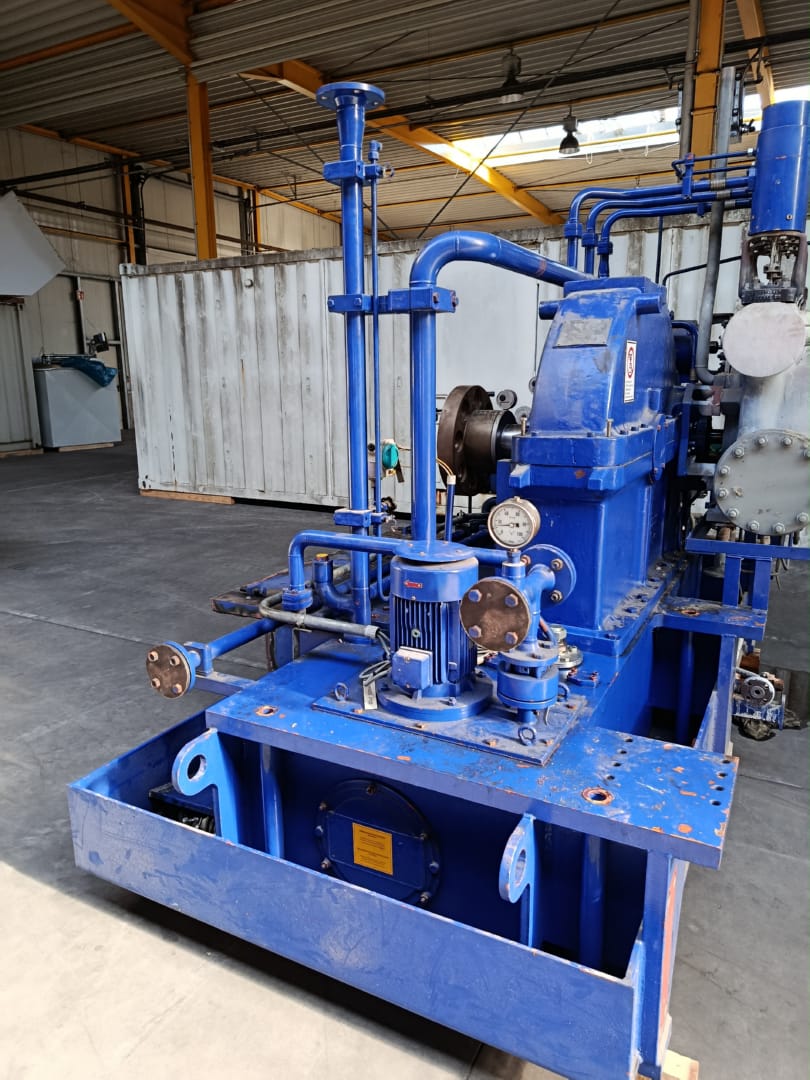

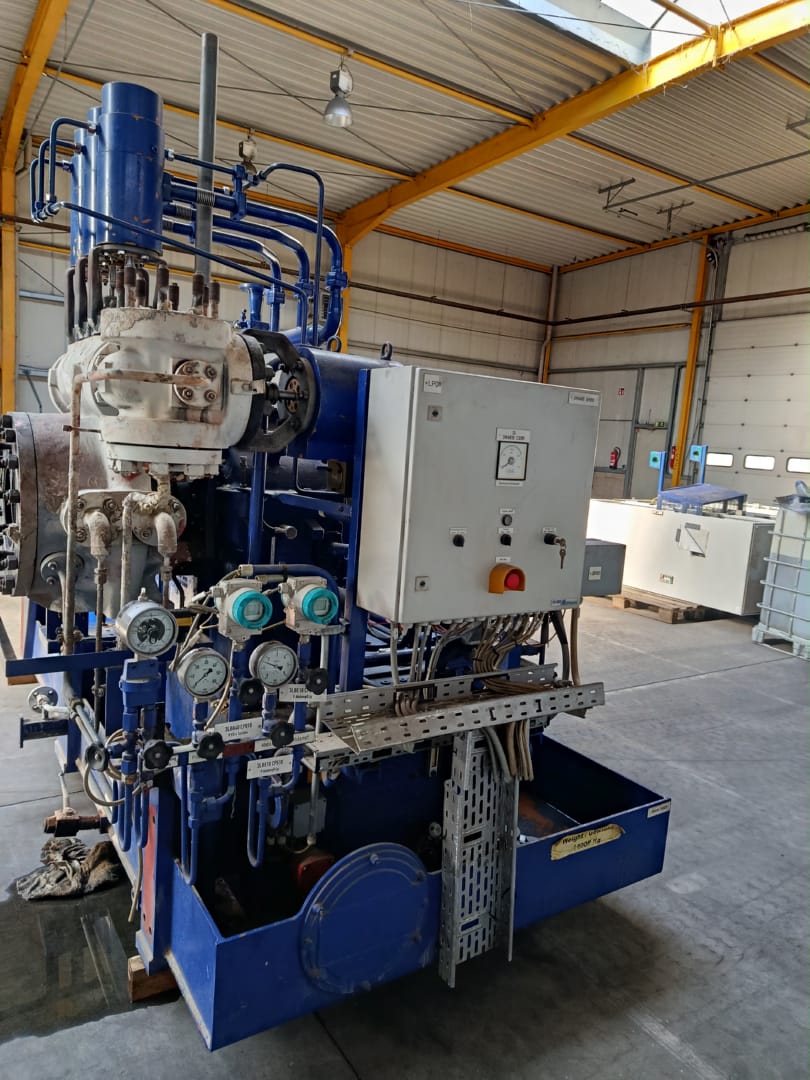

Siemens CFR3 G5A steam turbine
| Manufacturer: | Siemens |
| Model: | CFR3 G5A |
| Type: | Steam turbine condensate |
| Serial number: | 4 535 041 |
| Mechanical power [kW]: | 928 |
| Pressure input [bar]: | 31 – 43, 39 norm |
| Inlet temperature [°C]: | 340 – 416, 390 norm |
| Output pressure [bar]: | 0.5 – 1.5, 0.5 norm |
| Output temperature [°C]: | 320 |
| Year of construction: | 2008 |
| Operating hours: | 92.014 |
| Weight [kg]: | – |
| Dimensions L x W x H [m]: | – |

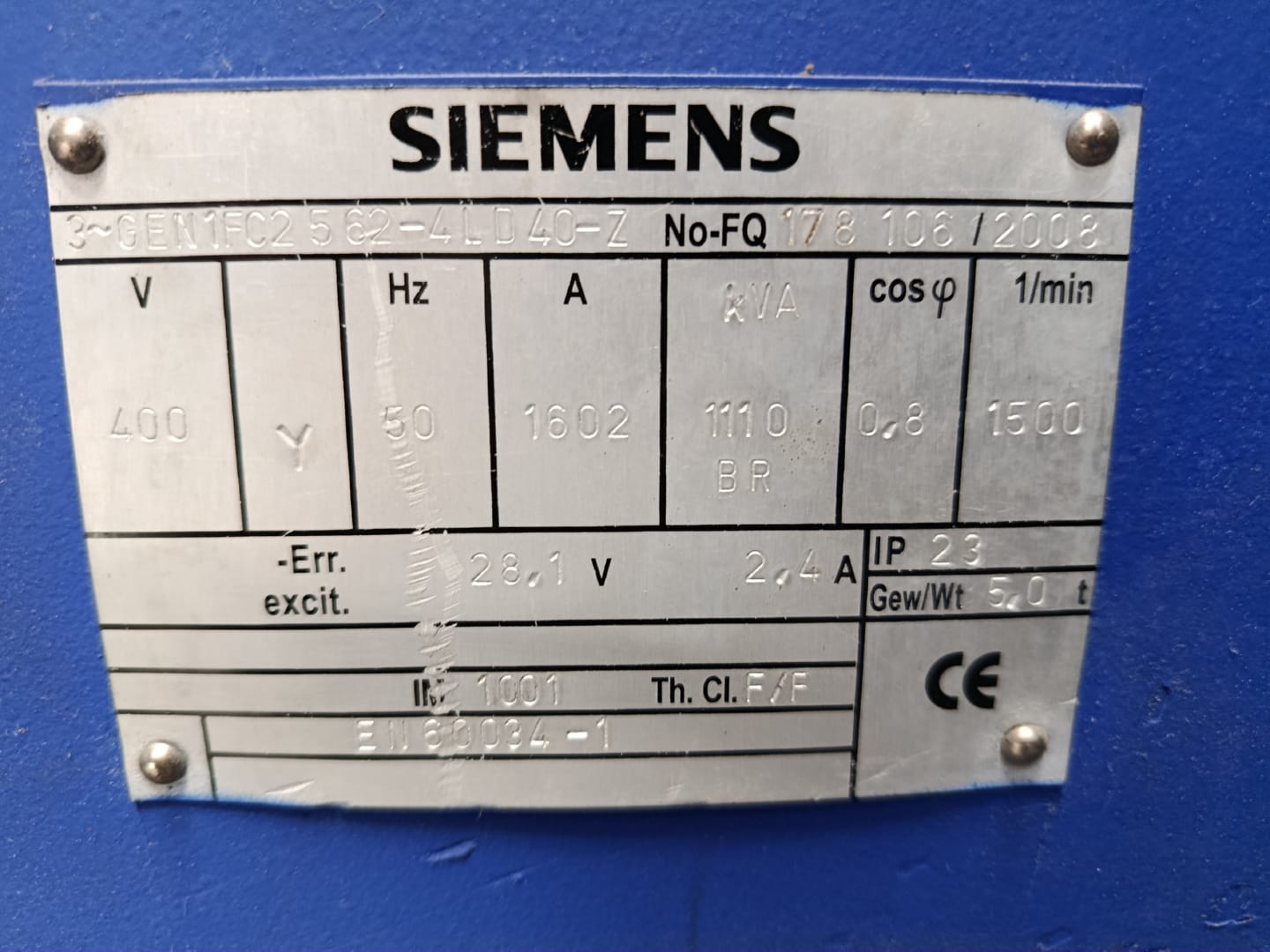

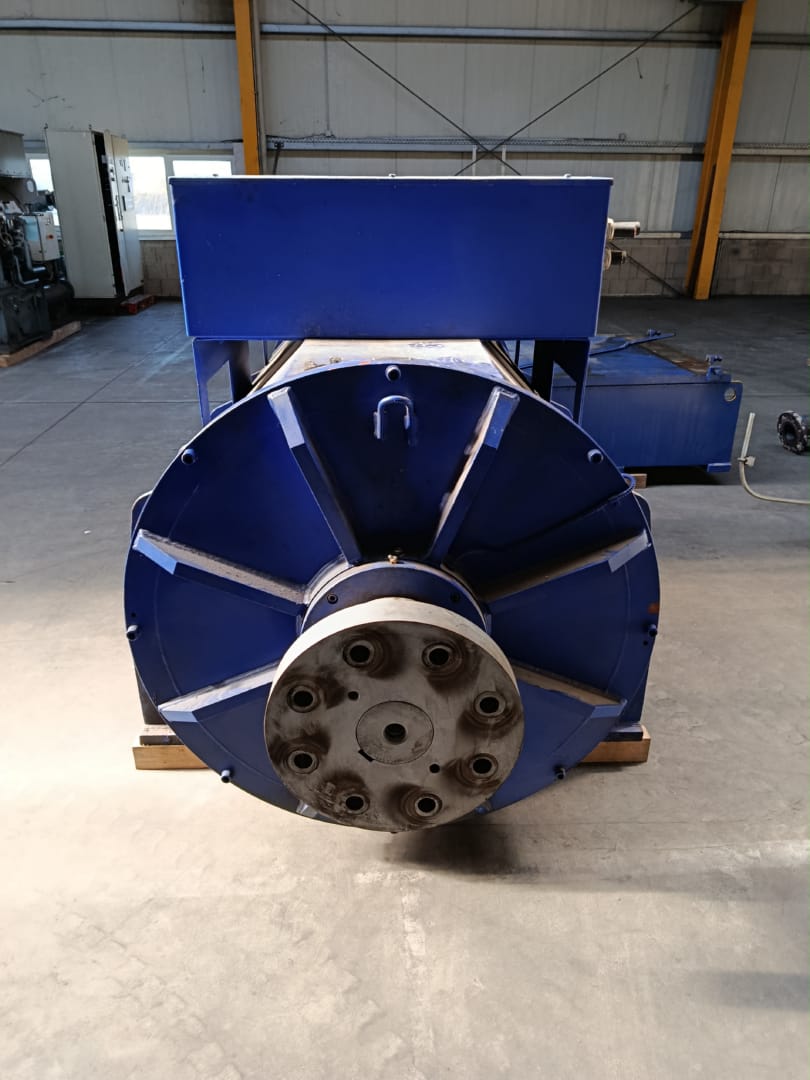

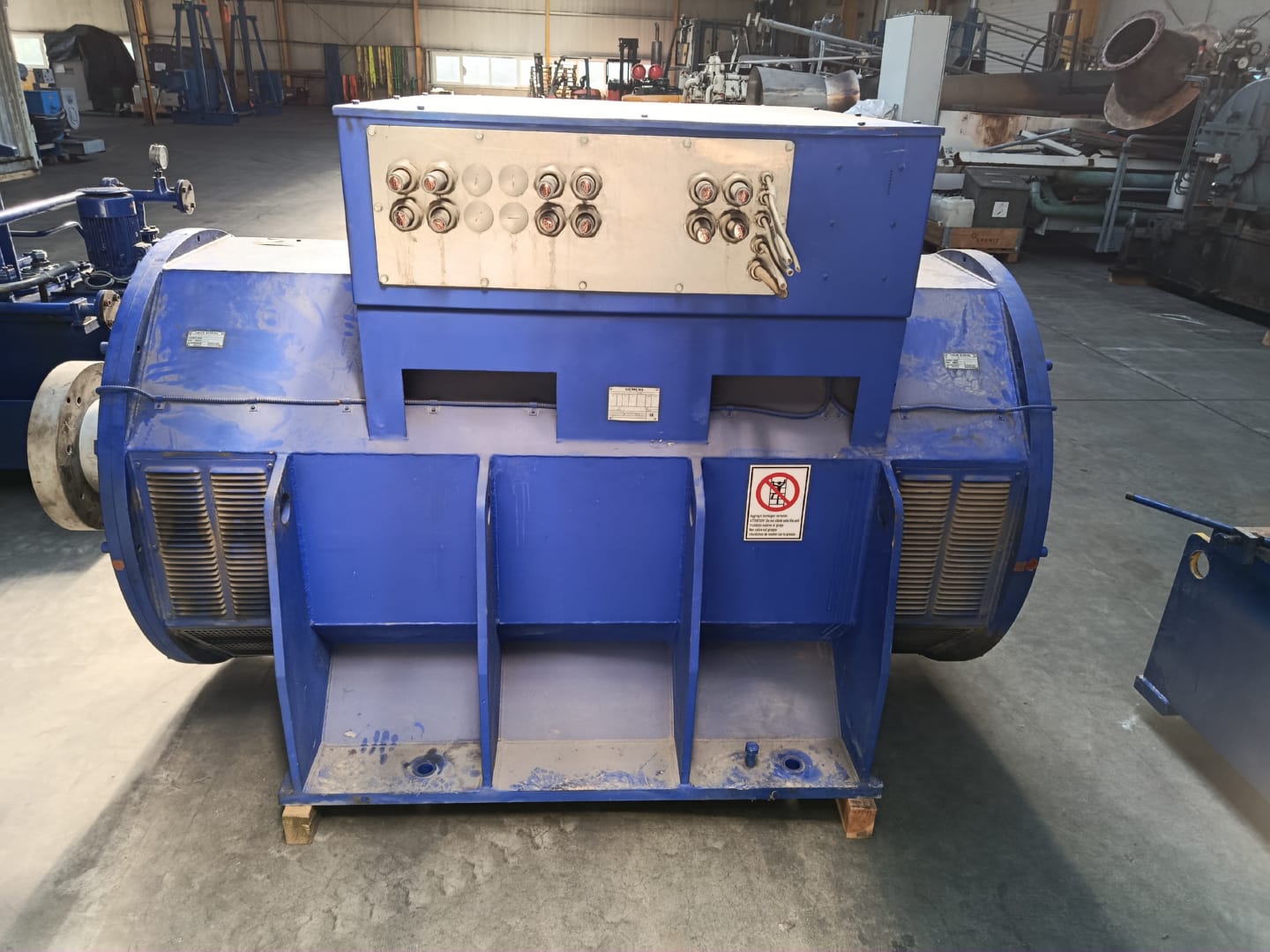

AC generator Siemens GEN1FC2 5 62-4LD40-Z
| Manufacturer: | Siemens |
| Model: | GEN1FC2 5 62-4LD40-Z |
| Type: | AC synchronous generator |
| Power [kVA]: | 1.110 |
| Voltage [V]: | 400 |
| Frequency [Hz]: | 50 |
| Current [A]: | 1.602 |
| Speed [rpm]: | 1.500 |
| Year of construction: | 2008 |
| Operating hours: | 92.014 |
| Weight [kg]: | 5.000 |
| Dimensions L x W x H [m]: | – |
