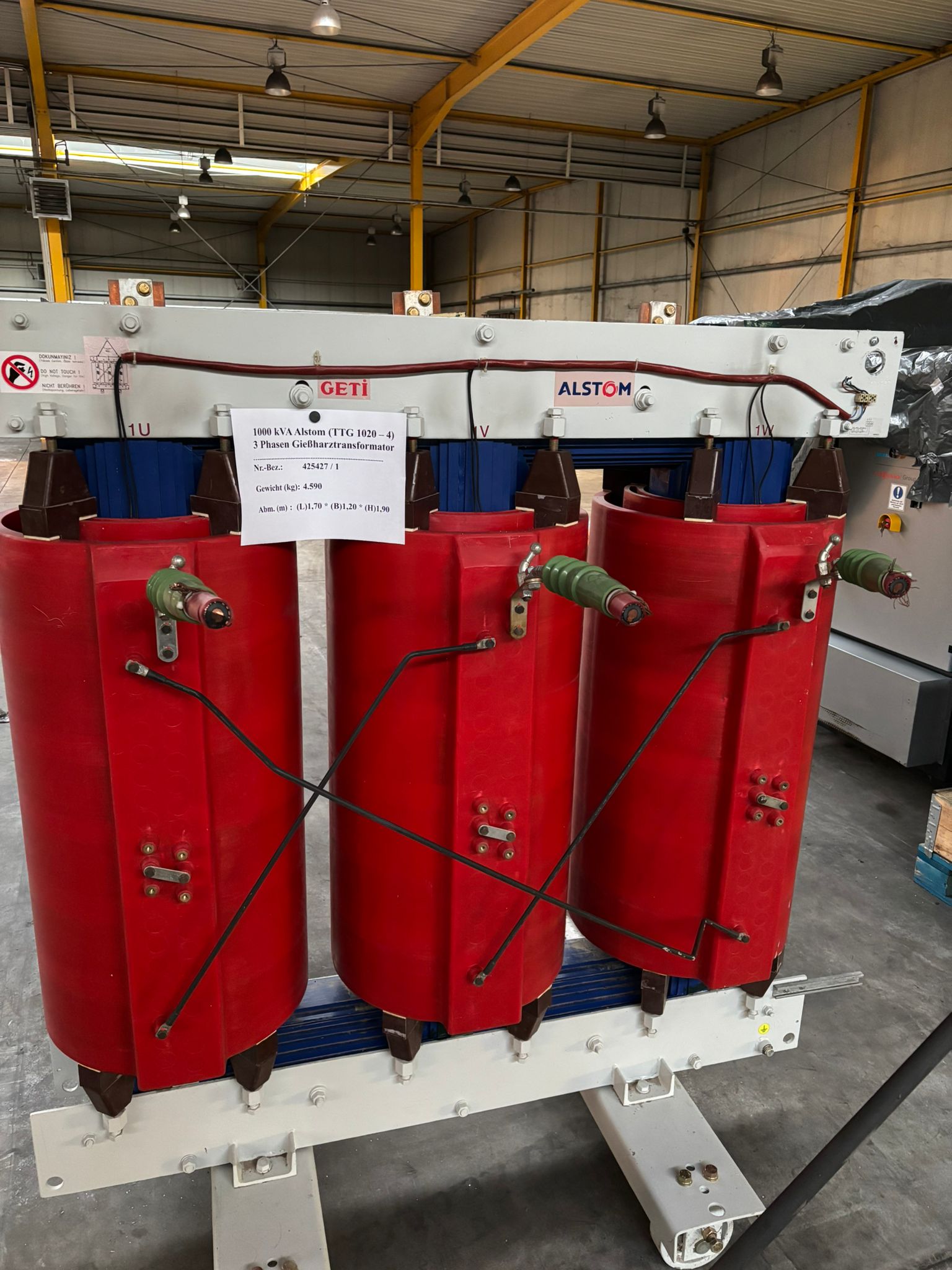

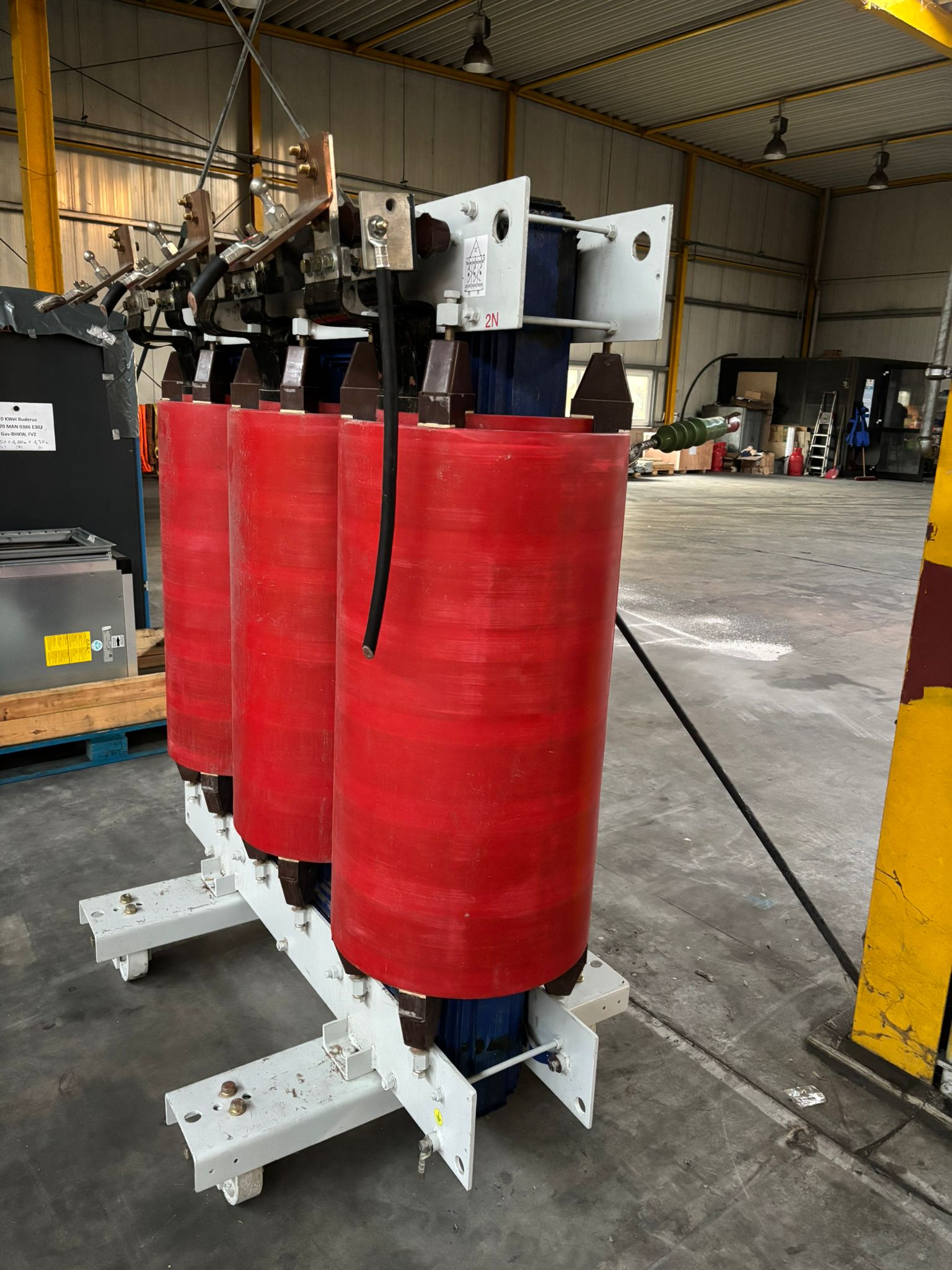

Alstom 3-phase cast resin transformer TTG 1020-4

Transformer from 2002,
complete (closed module).
1 available
21 kV / 400 V, 50 Hz

Price: €16,000

plus VAT, FCA free


Transformer cast resin

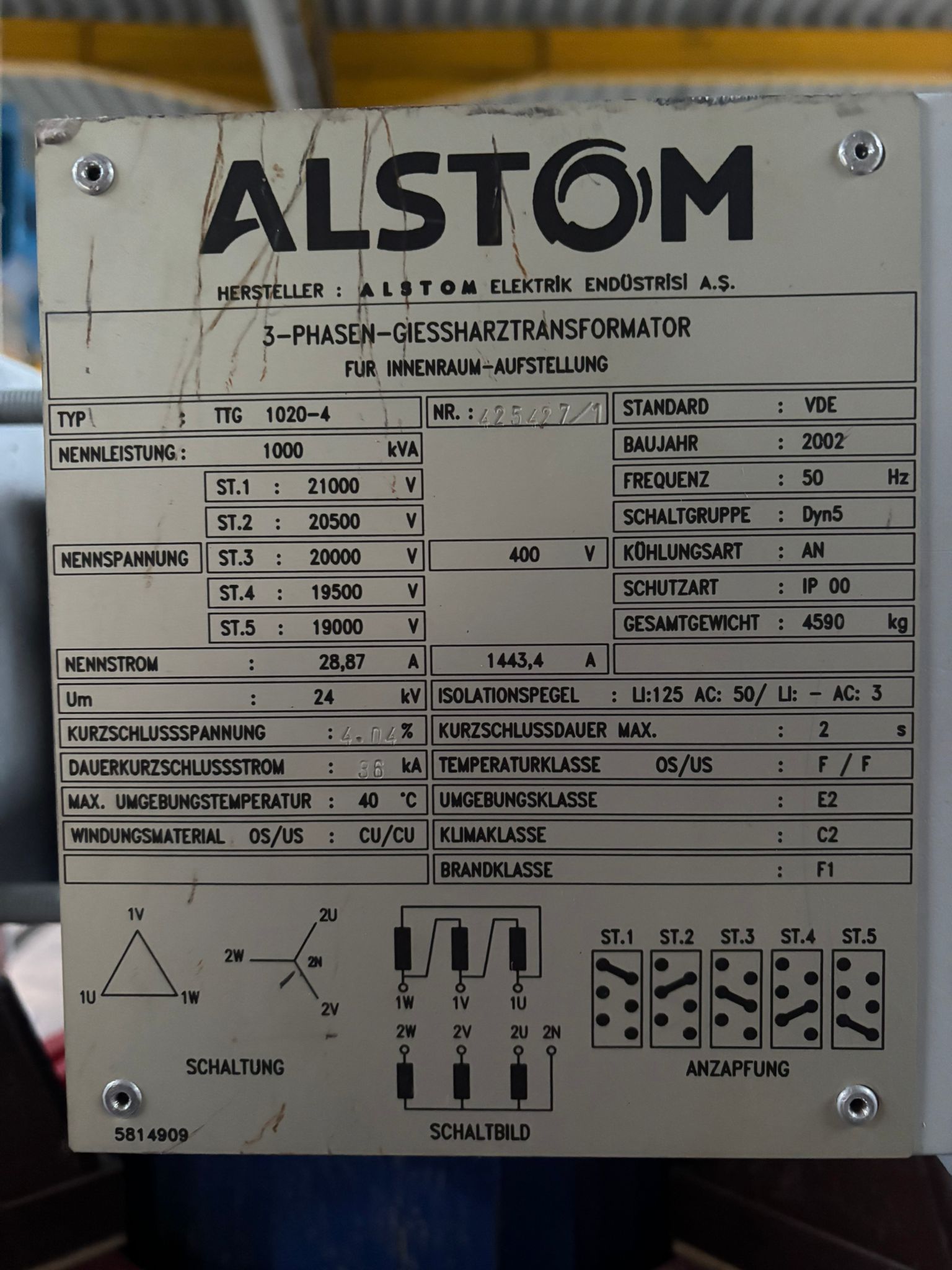

Manufacturer:Alstom
Model: TTG 1020-4
Type:Cast resin transformer
Winding material:copper
Serial number:425427/1
Power [kVA]:1.000
Entrance [KV]:21 / 20,5 / 20 / 19,5 / 19
Output [V , A, Hz]:400 / 1.443 / 50
Um [kV]:24
Rated current [A]:28,87
Year of manufacture:2002
Weight [kg]:4.590
Dimensions LxWxH [cm]:170 x 120 x 190
